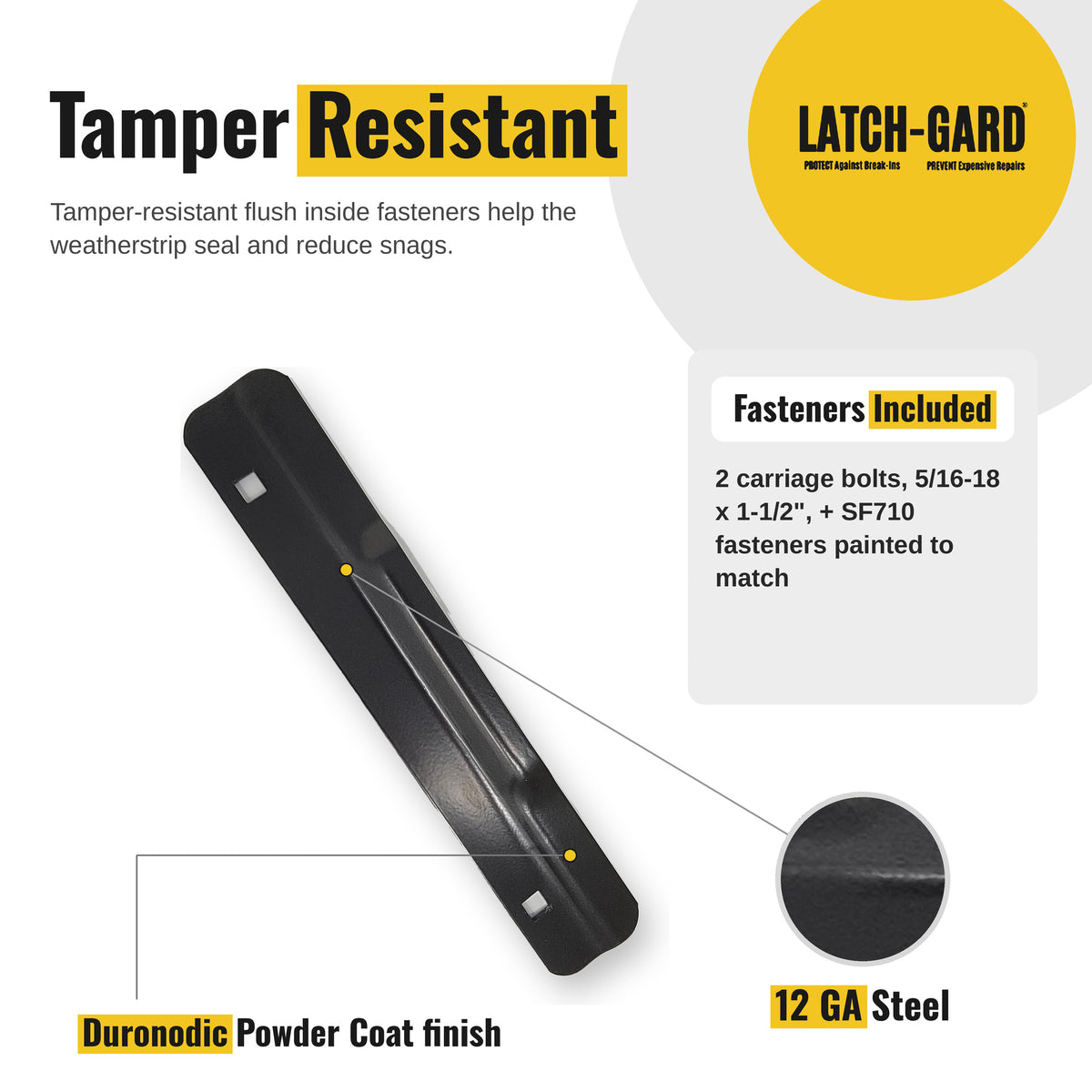

Latch-Gard LG130D tamper-resistant fasteners and key features infographic
Latch-Gard LG130D easy install steps with latch guard shown on an outswing door

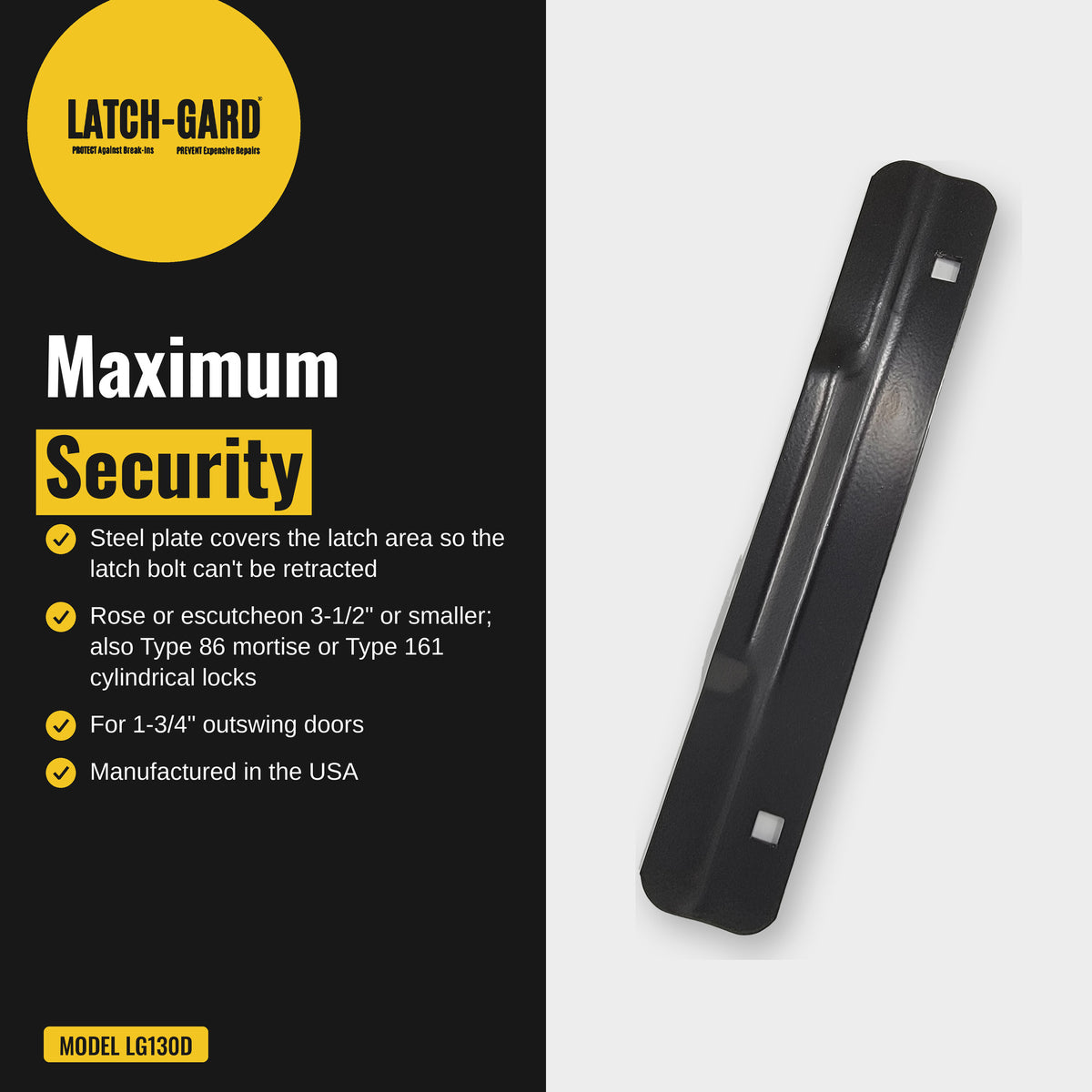

Latch-Gard LG130D maximum security infographic: plate blocks prying at the latch
Latch-Gard LG130D latch guard product video: dimensions, features and installation

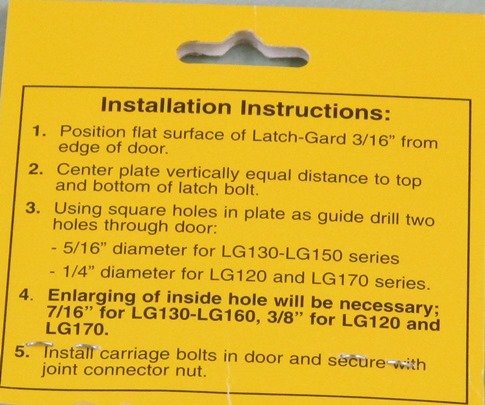

Latch-Gard LG130D installation instruction card

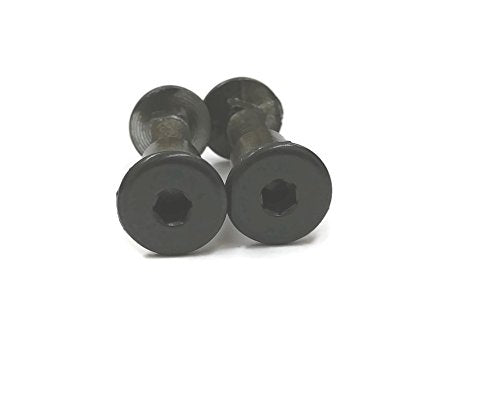

Latch-Gard LG130D Duronodic carriage bolts and flush security fasteners included
Latch-Gard

Latch-Gard LG130D Latch Guard, 1-3/4 x 10 Inch, Outswing Door, 12 Gauge Steel, Duronodic, Narrow

SKU: B075Q13BJ9
Sale price$19.85

Latch-Gard LG130D is a narrow 1-3/4 x 10 inch latch guard for out-swinging doors. The steel plate covers the latch area so the latch bolt cannot be retracted. Made in the USA.

  • Model: LG130D. Part LG130D/SF
  • Plate: 1-3/4 in wide x 10 in high, 12 gauge steel, 0.105 in thick, two square holes
  • Finish: Duronodic powder coat
  • Mounting holes: 7-1/2 in center to center
  • Door: out-swinging, 1-3/4 in thick
  • Lock: rose or escutcheon 3-1/2 in or smaller. Also Type 86 mortise or Type 161 cylindrical locks
  • Handing: reversible for right or left openings
  • Install: drill two holes in the door
  • Hardware: two 5/16-18 x 1-1/2 in carriage bolts with SF710 tamper-resistant flush fasteners
